Quenching and tempering is a widely used heat treatment process following closed die forging.
While forging enhances the strength of products, it often leaves them with low hardness. To achieve high strength and hardness, heat treatment is applied after forging. Quenching and tempering is the most cost-effective and convenient method to improve both the strength and toughness of steel forgings.
What is Quenching and Tempering?
Quenching and tempering is a fundamental heat treatment process employed to significantly enhance the mechanical properties of steel forgings. This process is especially crucial following closed die forging, as it imparts the necessary strength and toughness required for various industrial applications.
The first step in quenching and tempering is austenitizing. This involves heating the steel forging blanks above a critical temperature, which is typically at least 1350°F (732°C). The objective is to transform the steel's microstructure into austenite, a nonmagnetic phase of iron. This phase transformation is crucial because it sets the stage for the formation of martensite during quenching. The heating process must be carefully controlled and maintained for a predetermined period, usually around one hour per inch of thickness. This duration ensures that the austenite formation is uniform throughout the material.
Quenching

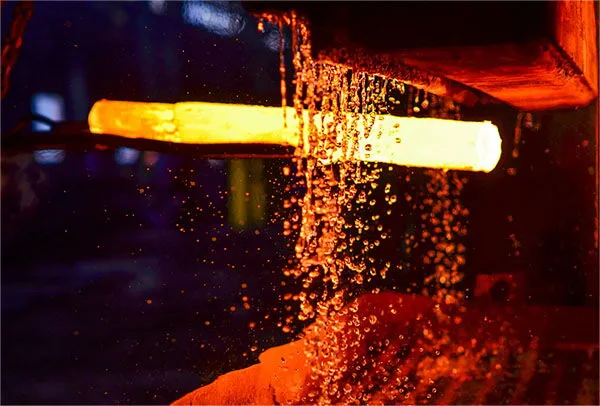

Once the austenitizing phase is complete, the steel forgings are subjected to quenching. Quenching involves the rapid cooling of the material from the austenitizing temperature. This rapid cooling is essential for transforming the austenite into martensite, a much harder and more brittle phase of steel. In ferrous alloys, such as alloy steel, carbon steel, and some types of stainless steels, this transformation significantly increases the hardness and strength of the material. However, in non-ferrous alloys like brass, aluminum, and some superalloys, quenching generally results in a softer material.
The choice of cooling medium for quenching plays a critical role in determining the final properties of the steel. Common cooling media include forced air, nitrogen or other gases, and various liquids such as oil, water, a polymer solution, or brine. Each cooling medium has distinct properties and cooling rates, which can be selected based on the desired mechanical properties and the type of material being treated. For instance, oil provides a slower cooling rate compared to water, which can help in reducing the risk of cracking in more complex geometries.
Tempering
While quenching increases the hardness of steel through the formation of martensite, it also makes the material very brittle, which can be detrimental to its performance in practical applications. To alleviate this brittleness, the steel undergoes tempering. Tempering is the process of reheating the quenched steel to a lower temperature, well below the austenitizing temperature, and then allowing it to cool slowly. This heat treatment reduces the hardness to a more manageable level and significantly improves the toughness of the material.
The tempering temperature is a critical parameter that determines the final balance between hardness and toughness. Higher tempering temperatures result in a greater reduction in hardness and an increase in toughness, making the material more ductile and less prone to cracking under stress. Conversely, lower tempering temperatures maintain higher hardness levels but result in less toughness.
Why Quenching and Tempering for Steel Forgings?
Quenching and tempering are essential heat treatment processes for steel forgings, making them less brittle and more ductile without significantly sacrificing hardness. This combination of processes results in a harder and tougher part, which is also more weldable and ductile than ordinary carbon steel.
Benefits of Quenching and Tempering
The key benefit of quenching and tempering is the improved toughness, which translates to greater resistance to wear and abrasion. This makes the process particularly advantageous for wear parts that require enhanced abrasion resistance and higher yield strength, such as those used in mining, quarrying, earthmoving, and construction.
Improved Ductility and Hardness: By balancing hardness and ductility, quenching and tempering produce steel forgings that can endure higher stress and strain, reducing the likelihood of fractures.
Enhanced Wear Resistance: The toughness achieved through this process means that steel forgings are better suited for high-wear applications, providing longer service life and reduced maintenance.
Greater Weldability: The resulting material is more compatible with welding processes, facilitating easier and more reliable assembly in various applications.
Applications
Quenching and tempering are widely used in industries where the strength and durability of steel parts are critical. Examples include:
Mining and Quarrying: Components such as crusher parts and wear plates that need high abrasion resistance.
Earthmoving and Construction: Parts like excavator teeth and bulldozer blades that require high strength and toughness to withstand heavy loads and impact.
Agricultural Machinery: Parts like flail mower blades and tub grinder teeth, where improved strength and wear resistance directly translate to extended product life and better performance.
