Temperature control plays a crucial role in the casting process, directly influencing the quality of castings, production efficiency, and the lifespan of molds. Among the various temperature factors, pouring temperature and mold temperature are two key elements that significantly affect the final product. The pouring temperature directly determines the fluidity and filling capacity of the molten metal, while the mold temperature affects the forming process and the durability of the mold. Proper temperature management not only improves casting quality but also extends the mold's service life, ensuring production stability. This article will explore the effects of pouring and mold temperatures on cast quality and propose corresponding temperature control methods and techniques.

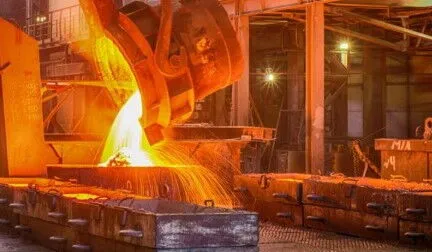

Pouring temperature refers to the temperature at which the molten metal enters the mold cavity from the furnace. It is a critical factor in casting that directly affects the forming quality of the castings. The choice of pouring temperature must be adjusted based on the material, shape, size, and casting process of the workpiece. Different types of castings require different pouring temperatures, and controlling this temperature range directly impacts aspects such as surface quality, internal defects, and fluidity.
Both excessively high and low pouring temperatures negatively affect the surface quality of castings. If the pouring temperature is too high, the increased fluidity of the molten metal can lead to defects like gas holes, pinholes, and oxidation, which can further degrade the strength and corrosion resistance of the alloy. On the other hand, pouring temperature that is too low results in poor fluidity, which can cause defects such as cold shuts and cracks, making the surface rough and affecting the appearance and mechanical properties of the casting.
The pouring temperature is also closely related to internal defects like shrinkage cavities, porosity, and inclusions. When the pouring temperature is too high, the increased fluidity of the molten metal allows for better filling of the mold but also causes the cooling rate to be too rapid, leading to defects like shrinkage cavities and voids. Conversely, when the pouring temperature is too low, the poor fluidity of the metal leads to incomplete mold filling, resulting in cold shuts and areas that do not fully solidify, which compromises the strength and stability of the casting.
Different types of alloys require different pouring temperatures. For example, the pouring temperature for aluminum alloys is generally between 680°C and 720°C, while the pouring temperature for steel castings is higher, typically between 1450°C and 1550°C. This difference arises because aluminum alloys have a relatively low melting point and poor fluidity, requiring higher pouring temperatures to improve flow, whereas steel alloys have a higher melting point and better fluidity, allowing for slightly lower pouring temperatures.
Mold temperature refers to the temperature of the mold itself, and it plays a significant role in the forming quality of castings, their mechanical properties, and the mold's lifespan. Proper mold temperature not only ensures the smooth formation of castings and prevents defects but also extends the mold's durability.
Mold temperature directly affects the cooling rate of the casting. When the mold temperature is too low, the molten metal cools rapidly upon entering the mold, which can lead to surface defects like porosity, cracks, and cold shuts. Additionally, the metal may fail to completely fill the cavity, leading to insufficient strength in the casting. When the mold temperature is too high, the cooling rate slows, causing uneven solidification of the casting, which may result in dimensional inaccuracies, deformations, and shrinkage cavities. The optimal working mold temperature is typically maintained between 150°C and 300°C to ensure smooth forming and a smooth surface for the casting.
Mold temperature also has a close relationship with the internal quality of the casting. If the mold temperature is too low, the rapid cooling of the molten metal can cause shrinkage cavities and cracks. If the mold temperature is too high, it slows down the cooling rate, which can result in high surface temperatures that affect the grain structure inside the casting, leading to a reduction in its mechanical properties.
The fluctuation of mold temperature also significantly affects the mold's lifespan. When molds are exposed to excessively high or low operating temperatures, thermal stresses can build up on the surface, increasing wear and tear. High temperatures, especially during the production of aluminum or magnesium alloy castings, can cause fatigue damage to the mold material, reducing its service life. Proper temperature control, maintaining the mold within an optimal range, can effectively enhance its durability and extend its service life.
Temperature control is a critical aspect of the casting process, and proper management can significantly improve casting quality, reduce defects, and enhance production efficiency while lowering costs. The following methods and technologies can help achieve optimal temperature control during casting.
The pouring temperature is typically controlled through precision temperature control devices and furnace temperature regulation systems. These systems can automatically adjust the furnace temperature and pouring temperature according to the material, shape, and requirements of the casting, ensuring stable pouring temperatures. For high-precision castings, temperature recorders and sensors can monitor the pouring temperature in real time, effectively avoiding both high and low temperature issues, ensuring consistent casting quality.
Mold temperature control requires the use of temperature control machines or automated mold temperature regulation systems. These devices can adjust the mold temperature in real time based on the casting process to ensure the mold operates at its optimal working state. By adjusting the mold temperature, surface defects caused by overly high or low mold temperatures can be avoided, and the mold's service life can be extended.
Mold preheating is an essential step in the casting process that enhances the mold's stability and durability. The preheating temperature is typically maintained between 150°C and 200°C, which helps avoid cold shuts and defects caused by excessively low mold temperatures. Molds also need to maintain a certain temperature during production, which is usually achieved by supplementary heating equipment to ensure temperature stability and avoid temperature fluctuations that could degrade casting quality.
In modern casting, temperature monitoring and adjustment systems have become standard equipment. Automated temperature control systems continuously monitor key parameters such as pouring temperature, mold temperature, and molten metal temperature and automatically adjust them to maintain temperature fluctuations within acceptable ranges. These systems not only improve casting quality but also reduce human error, lower production costs, and improve efficiency.
Different casting processes have varying temperature control requirements due to differences in casting materials, complexity, and production cycles. In actual casting production, how to manage and adjust temperatures according to each specific process has become a key factor in improving both quality and efficiency. Below are the special temperature control requirements for several common casting processes.
Sand casting is a traditional casting process widely used for materials like steel and aluminum alloys. The process is characterized by the use of sand molds, which offer low cost and high production flexibility. In sand casting, the control of pouring and mold temperatures is critical. Sand molds have poor heat dissipation, which slows cooling, so appropriate pouring temperatures help prevent defects like shrinkage cavities or porosity due to uneven cooling. For iron castings, pouring temperatures in sand casting typically range from 1350°C to 1450°C. Mold temperature control is mainly achieved through preheating, and the temperature is usually maintained between 150°C and 250°C to minimize the temperature difference between the sand mold and the molten metal, reducing cracks and thermal stress.
Investment casting (also known as lost wax casting) is a high-precision casting process used for producing complex and high-precision castings, especially in aerospace, automotive engines, and medical devices. The key characteristic of investment casting is that the mold material is a consumable material (such as wax or resin), and the surface finish requirements are high. Pouring temperature control is crucial in this process because any temperature deviation can lead to surface defects or distortion. The pouring temperature for steel castings in investment casting is typically controlled around 1600°C, while aluminum alloy castings require pouring temperatures between 700°C and 750°C. Mold temperature control is also important and is usually achieved by preheating, ensuring that the mold is at an appropriate temperature before pouring. Excessively low mold temperatures can cause cold shuts and surface defects, while too high a temperature can lead to uneven solidification and affect precision.
Die casting involves injecting molten metal at high pressure into a metal mold, typically used for producing high-volume, complex, small-sized castings, particularly for aluminum, magnesium, and other light alloys. The key aspect of die casting is the high-speed injection of molten metal, which requires strict temperature control. If the pouring temperature is too high, it can cause splashing or even mold damage, while too low a temperature may result in incomplete filling, causing porosity and shrinkage defects. In die casting, pouring temperatures generally range from 660°C to 720°C, depending on the alloy type and casting complexity. Mold temperature control directly affects the molding effect and surface quality of the casting. Too low a mold temperature can cause rough surfaces or porosity, while too high a mold temperature may cause surface oxidation, affecting the final quality. Mold temperatures are typically controlled between 180°C and 220°C to ensure high precision and good surface quality.
Temperature control plays a vital role in the casting process, and proper pouring and mold temperatures directly impact casting quality and mold lifespan. By precisely controlling the pouring and mold temperatures, casting defects such as porosity, shrinkage cavities, and cold shuts can be effectively avoided, ensuring good forming quality and mechanical properties. Additionally, proper temperature control can extend the lifespan of molds, reduce production costs, and improve efficiency. Future advancements in temperature control technology will continue to enhance the precision and efficiency of casting processes, driving the industry toward greater reliability and sustainability.
