Aluminum alloy casting involves injecting molten aluminum into a mold and allowing it to cool and solidify into a desired shape. The melting and pouring processes are crucial to ensuring the quality and performance of the castings. Proper melting techniques ensure uniformity and cleanliness of the aluminum liquid, while precise pouring ensures smooth filling of the mold and minimizes defects such as porosity and inclusions. This article discusses the principles, key techniques, and applications of melting and pouring in
aluminum alloy casting.
Melting is one of the most fundamental and critical processes in aluminum alloy casting, where raw aluminum alloys are heated to their melting point to become liquid. The quality of the melting process directly impacts the composition, uniformity, and quality of the casting.
Aluminum alloys typically melt at around 660°C, although the exact melting point varies between different alloys. If the melting temperature is too low, the alloying elements may not fully dissolve, leading to uneven composition. If the temperature is too high, the aluminum can oxidize excessively, potentially forming oxide inclusions that degrade the casting quality.
Ideal Melting Temperature: The optimal temperature range is usually between 680°C and 720°C. The exact range depends on the type of aluminum alloy, with aluminum-silicon alloys having a lower melting point and aluminum-copper alloys requiring higher temperatures.
There are various types of melting furnaces, each with specific advantages and applications:
Crucible Furnace: Suitable for small to medium-scale aluminum casting, this furnace is easy to control and ideal for producing a variety of small batches.
Induction Furnace: Offers high energy efficiency and excellent temperature control, making it ideal for precision casting where temperature and alloy composition need to be carefully managed.
Resistance Furnace: Provides uniform heating but is less energy-efficient. It is better suited for large-scale production.
During melting, the aluminum liquid may contain gases (such as hydrogen) and impurities (such as oxides), which can negatively affect the density, strength, and surface quality of the casting. Therefore, refining the aluminum liquid is crucial.
Gas Refining: Common refining methods involve blowing inert gases (such as argon or nitrogen) into the aluminum liquid to remove hydrogen and other gas impurities. This process reduces hydrogen solubility, thereby decreasing the chances of porosity.
Fluxing Agents: Adding fluxing agents, like sodium chloride or potassium chloride, helps remove oxides from the aluminum liquid and improves purity.

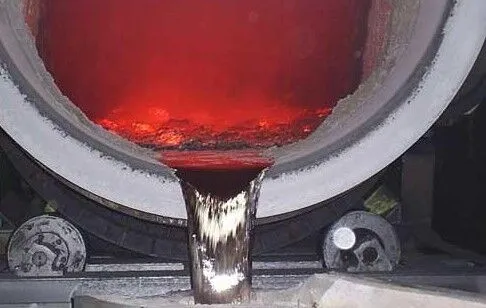

Pouring is the process of transferring molten aluminum into a mold, and it plays a vital role in aluminum alloy casting. Proper pouring techniques ensure smooth mold filling, reduce the chances of poor flow, and minimize casting defects.
Controlling the pouring temperature is critical to the quality of the aluminum alloy casting. If the pouring temperature is too low, the liquid aluminum may flow poorly, leading to defects like cold shuts. If the temperature is too high, oxidation may occur, causing issues such as porosity and cracks.
Ideal Pouring Temperature: The optimal pouring temperature is typically between 680°C and 720°C, though adjustments are needed based on the type of aluminum alloy and the complexity of the mold.
The choice of pouring method affects the flowability of the aluminum and the mold's filling efficiency. Common pouring methods include gravity pouring, low-pressure pouring, and high-pressure pouring.
Gravity Pouring: The most common method, where molten aluminum is poured into the mold by gravity. It is cost-effective and ideal for simple molds but may lead to air bubbles and uneven flow.
Low-Pressure Pouring: Involves applying low pressure to inject aluminum into the mold, reducing air bubbles and improving the casting's density. It is used in high-quality casting applications.
High-Pressure Pouring: Involves injecting molten aluminum into the mold under high pressure, ideal for precision casting. This method ensures that aluminum quickly fills the smallest sections of the mold, reducing flow issues.
The gate design is critical for ensuring smooth aluminum flow during pouring. A well-designed gate prevents issues like flow stoppage and gas entrapment.
Gate System Optimization: Ensuring that the aluminum flows smoothly into the mold without introducing bubbles or impurities. Common gate types include direct gates and ring gates.
Gate Size: The size of the gate should be chosen based on the mold volume and the aluminum flow rate. Too large a gate may cause a rapid temperature drop, while too small a gate may restrict the aluminum flow.
In aluminum alloy casting, risers and cooling systems are essential. The riser system ensures that aluminum continues to feed into the mold as it solidifies, preventing defects such as shrinkage porosity.
Riser Design: Risers must work with the gating system to ensure that aluminum liquid can flow into the casting during cooling, reducing defects.
Cooling Control: Optimizing the mold cooling design helps control the cooling rate of the aluminum liquid, preventing cracks and distortions caused by uneven cooling.
Common defects in aluminum alloy casting include porosity, inclusions, shrinkage, and cracks. Here are their causes and solutions.
Cause: Excessive hydrogen absorption in the aluminum liquid or prolonged exposure to air. Solution: Use gas refining methods to remove hydrogen and reduce gas solubility. Minimize exposure to air during melting and optimize pouring techniques.
Cause: Oxides, impurities, or external contaminants in the aluminum liquid. Solution: Strengthen refining and filtration processes, using effective fluxing agents and filters to remove impurities.
Cause: Volume reduction during solidification, leading to insufficient aluminum supply. Solution: Properly design risers and gating systems to ensure continuous aluminum supply during cooling.
Cause: Thermal stresses from uneven cooling during solidification. Solution: Control the cooling rate to avoid excessive thermal stress, optimize mold design, and ensure even cooling.
Melting and pouring technologies are crucial in aluminum alloy casting as they directly affect the quality, shape, and performance of the castings. By precisely controlling melting temperatures, refining processes, and choosing appropriate pouring methods, the quality of aluminum castings can be significantly improved, and defects can be minimized. As technology advances, the application of automation, intelligence, and environmental-friendly techniques will further enhance the efficiency and sustainability of aluminum alloy casting processes.
