Forged steel flanges are vital components in residential and industrial piping systems and the construction industry due to their exceptional strength, durability, and wide range of applications. The forging process is a key step in manufacturing forged steel flanges, directly influencing their performance and lifespan. This article will explore the
forging process, material properties, and the advantages and challenges of forged steel flanges in various applications.

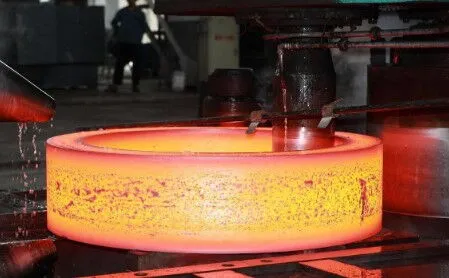

Forging is the process of shaping metal materials through powerful pressure, and it is the principle behind the manufacturing of forged steel flanges. In the forging process, steel is first heated to a malleable state and then shaped using forging, hammering, or other mechanical methods. This manufacturing method offers several advantages.
The forging process improves the microstructure of the metal, eliminating potential defects from the casting process, such as porosity and inclusions, thereby enhancing the mechanical properties of the metal.
The fine grain structure created during forging results in higher tensile strength and impact toughness, making forged steel flanges perform exceptionally well in high-temperature and high-pressure environments.
Forged steel flanges are typically made from low-carbon or carbon-free steel, which provides good strength and durability along with excellent weldability and formability. Key material characteristics include the following.
The design of forged steel flanges allows them to operate reliably under extreme conditions, making them suitable for high-temperature piping systems in refineries and power plants. They can withstand sustained high temperatures and sudden high-pressure changes, ensuring the safety and stability of piping systems.
The structure of forged steel flanges prevents embrittlement in low-temperature environments, making them suitable for refrigeration systems. This ensures temperature stability and prevents rapid spoilage of food and other products, playing a crucial role in cold chain logistics and HVAC systems.
Forged steel flanges generally have superior corrosion resistance in seawater and other corrosive environments compared to other materials, making them suitable for marine engineering, chemical plants, and other demanding working conditions.
The production process of forged steel flanges involves several critical steps, each of which must be strictly controlled to ensure quality and performance.
After shaping, forged flanges undergo solution heat treatment to improve their toughness and strength. Different metals are treated at specific temperatures to achieve optimal physical properties. Proper heat treatment not only eliminates residual stress but also refines the grain structure, enhancing fatigue resistance.
After heat treatment, the flanges must undergo 100% radiographic or ultrasonic testing to detect any potential internal defects. If defects exceed acceptable limits, the flange must be discarded to ensure the safety of the final product. This rigorous testing step is the foundation of quality assurance.
Once testing is complete, the flanges enter the machining phase, which includes:
Turning Inner and Outer Circles: The outer and inner circles of the flange must be precisely turned to ensure a tight connection. During turning, cutting speed and feed rate must be controlled to minimize the impact of cutting heat on material properties.
End Face Machining: Both end faces must be machined flat to ensure a proper seal during installation. After machining, surface roughness measurements are taken to ensure compliance with design requirements.
Seal Face Treatment: For flanges without gaskets, the sealing surface can be directly machined; for flanges with gaskets, the sealing surface is machined after the gasket is welded to ensure reliable sealing.
Marking is done according to design drawings, followed by precise drilling. The center positions and quantities of bolt holes must meet requirements, with deviations between adjacent holes not exceeding ±0.6mm and deviations between any two holes not exceeding ±1mm. This step is crucial for the safe installation and use of the flange, ensuring a secure connection.
Forged steel flanges demonstrate wide application value across various fields, including but not limited to the following ones.
Oil and Gas Industry: Used in oil and gas pipelines, they withstand high pressures and corrosive environments, ensuring the safe transportation of energy.
Chemical Industry: Suitable for connecting pipelines that transport corrosive media, they ensure the system's sealing and safety, preventing environmental pollution from leaks.
Refrigeration and HVAC: In refrigeration systems, they maintain stable temperatures to prevent food spoilage and improve the energy efficiency and reliability of HVAC systems.
Marine Engineering: Due to their excellent corrosion resistance, forged steel flanges are widely used in offshore oil and gas extraction and shipbuilding.
Forged steel flanges, with their superior forging processes and exceptional material properties, have become indispensable components in the industrial and construction sectors. Through strict production processes and quality control, forged steel flanges can meet the demands of various applications, providing robust support to related industries. In the future, as technology advances and application fields expand, forged steel flanges will play important roles in more demanding situations, further driving industrial development and innovation.
