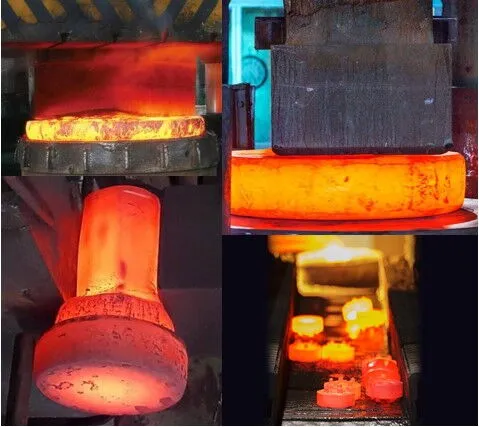

Stainless steel plays a crucial role in modern industries, being widely used in fields such as chemical engineering, aerospace, and healthcare. However, its unique physical and chemical properties make the forging process challenging.
Forging stainless steel not only demands a high level of technical expertise but also requires a deep understanding of the material's thermal characteristics and phase transformation behavior. This article systematically explores the
forging processes for austenitic, ferritic, and martensitic stainless steels, analyzing the challenges faced during forging and corresponding solutions.
Austenitic stainless steel is widely used in various industrial sectors due to its excellent corrosion resistance and mechanical properties. However, its forging process poses more challenges compared to ordinary steels.
The forging difficulty of austenitic stainless steel primarily stems from its lower thermal conductivity and narrow forging temperature range. Despite this, the likelihood of surface defects during forging is relatively low. This stability is attributed to the fact that austenite does not undergo phase transformation at high temperatures, allowing for better stability during forging above 927°C.
Controlling the final forging temperature is crucial for austenitic stainless steel. It should be maintained above 871°C for rapid cooling to prevent the formation of thermal cracks. During cooling, it is essential to avoid prolonged exposure to lower temperatures to minimize the risk of brittleness from phase transformations. For stabilized or ultra-low carbon stainless steels that have undergone sensitization treatment, temperature control during forging is also critical to avoid strain hardening.
Incorporating elements like sulfur or selenium during forging can enhance the mechanical properties of austenitic stainless steel; however, these elements may also lead to the formation of banded structures, resulting in surface cracking. Using titanium-alloyed 321 steel and stabilized 347 steel can effectively mitigate these issues, as they are less prone to banding segregation during forging. Additionally, maintaining a mildly oxidizing atmosphere during heating is essential to prevent decarburization, which is vital for the corrosion resistance of austenitic stainless steel.
Ferritic stainless steel offers relatively good forging performance, characterized by high thermal conductivity, making it suitable for large-scale industrial production.
Ferritic stainless steel has a wide forgeable temperature range, typically between 600°C and 1200°C. However, at elevated temperatures, grain growth and structural fragility can limit its forging capabilities. Generally, the forging temperature should be kept below 704°C to ensure good toughness. For example, when forging 16Cr25N (446) steel, the temperature must be below 871°C once the total deformation reaches 10% to avoid coarse grain formation and improve material toughness.
2. Cooling and Post-Processing
Ferritic stainless steel usually requires annealing after forging to optimize its microstructure and enhance mechanical properties. Due to its poor thermal conductivity, careful handling of surface defects during forging is necessary to prevent localized overheating that can lead to cracking. Therefore, methods such as air scraping or peeling are recommended over traditional grinding methods.
Appropriate processing and treatment methods are key to improving performance in the forging of ferritic stainless steel. Controlling the amount of deformation and final forging temperature can optimize grain structure, enhancing its corrosion resistance and mechanical strength. Ferritic stainless steel, with its excellent corrosion resistance and good weldability, finds extensive applications in chemical, petroleum, and food industries.
Martensitic stainless steel is known for its high strength and hardness, making it suitable for environments that demand superior strength and wear resistance.
The forging process of martensitic stainless steel requires careful temperature control to prevent crack formation. Typically, forging temperatures should be maintained between 1093°C and 1260°C; exceeding this range can lead to surface decarburization and the formation of ferrite, adversely affecting mechanical properties. During cooling, direct water spraying should be avoided to prevent forging cracks, and slow cooling in a sand pit at around 200°C is recommended.
2. Heating and Post-Processing
Efforts should be made to minimize the formation of S-ferrite during the forging of martensitic stainless steel to reduce the risk of cracking. Additionally, decarburization on the surface of forged parts should be minimized to maintain material strength. Typically, martensitic stainless steel requires tempering after forging to reduce hardness, facilitating machining. Quenching and tempering are performed after machining to ensure the final product's performance.
Due to its high strength and wear resistance, martensitic stainless steel is widely used in applications such as cutting tools, pump bodies, aerospace, and medical devices. With advancements in manufacturing technologies, the application prospects for martensitic stainless steel will broaden, especially in high-demand industrial environments.
The forging processes of stainless steel involve numerous technical details, requiring strict control at every stage of production to ensure the performance and quality of the final products. By gaining an in-depth understanding of the forging characteristics and process requirements of different types of stainless steel, manufacturers can effectively enhance forging efficiency, reduce defect rates, and meet the growing market demands. In the future, as new technologies and materials continue to emerge, the potential for stainless steel forging will be further explored, driving progress and development in related industries.
