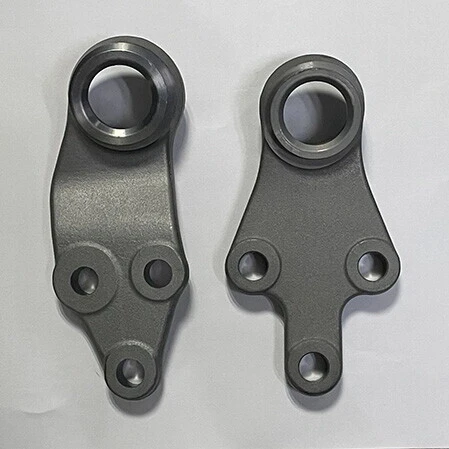

Ball joint housings serve as critical components in automotive suspension systems, providing protective enclosures for pivotal connections known as ball joints. These connections link a vehicle's control arms to its steering knuckles, facilitating controlled and smooth motion essential for navigating bumps and making turns while driving.
In addition to encasing the ball joint, these housings play a vital role in maintaining its proper positioning, even during high-intensity vehicular movements. Given the significant stress they endure and their pivotal role in the suspension system, ball joint housings must be crafted from materials offering exceptional strength and durability. The quality and integrity of these housings can profoundly impact the overall efficiency, performance, and longevity of a vehicle's suspension system.
Drop forging emerges as an optimal manufacturing process for producing ball joint housings. This method provides numerous advantages, particularly in enhancing the properties and performance of the final component. As a trusted drop forging manufacturer based in China, CF Forge specializes in custom forging various types of ball joint housings to meet precise specifications outlined in your drawings.
When it comes to manufacturing automotive components, material selection plays a crucial role, and forged steel stands out as one of the top choices for producing ball joint housings. Forged steel undergoes a process of heating and then hammering, pressing, or rolling under high pressure to achieve its final shape, resulting in a remarkably durable and resilient product.
Forged steel possesses several key characteristics that make it an excellent material for ball joint housings:
Superior Strength: The forging process aligns the grain structure of steel, significantly enhancing its strength. This structural realignment makes the resulting component highly robust, capable of enduring substantial stress without deformation or failure.
High Toughness and Durability: Forged steel components exhibit exceptional toughness and durability. They resist wear and tear, endure high pressure and extreme temperatures, and are resistant to fatigue, making them well-suited for the demanding conditions experienced by ball joint housings in a vehicle's suspension system.
Enhanced Metallurgical Properties: Through forging, the grain structure of steel is refined, and structural defects are minimized, leading to improved metallurgical properties. This results in a more uniform and consistent material, contributing to the reliability and longevity of the forged component.
Cost-effectiveness: Despite its superior properties, forged steel remains relatively cost-effective, particularly when considering the long-term lifespan and performance benefits it offers. This makes it a practical choice for manufacturing high-performance automotive components like ball joint housings.
Malleability: At high temperatures, steel becomes malleable, allowing it to be easily shaped during the forging process. This characteristic enables the creation of intricate shapes and designs, which are often necessary for complex components like ball joint housings.
The drop forging process used for manufacturing ball joint housings guarantees the production of top-notch, long-lasting, and dependable components. These parts benefit from the steel's aligned grain structure, resulting in unmatched strength, enhanced toughness, and superior wear resistance - essential qualities for components within an automotive suspension system. The step-by-step procedure for drop forging a ball joint housing is as follows:
Die Design and Creation: The process commences with designing and crafting a die, essentially a metal block serving as a mold for shaping the forged part. This die is meticulously engineered to match the precise dimensions and contours of the ball joint housing.
Steel Heating: The steel billet destined for the ball joint housing is heated until it reaches a malleable state. Temperature control is critical to ensure the steel can be shaped effectively without compromising its structural integrity.
Forging the Heated Steel: The heated steel billet is then transferred to a drop forge machine, where it encounters high pressure applied by a hammer or press. This force "drops" the steel into the die, compelling it to adopt the die's form.
Trimming and Finishing: Post-forging, the newly formed ball joint housing is extracted from the die. Any excess material, known as flash, formed around the edges during forging, is trimmed away. The part may undergo additional finishing processes to attain the desired surface texture and meet precise dimensional requirements.
Heat Treatment: Following forging and finishing, the ball joint housing typically undergoes a heat treatment regimen. This involves subjecting the part to controlled heating and cooling cycles to enhance specific properties, such as hardness, strength, and resistance to wear.
Inspection and Quality Control: The final stage entails a thorough inspection and quality assurance process to confirm the forged ball joint housing adheres to all prescribed specifications and quality benchmarks. This includes dimensional assessments, surface integrity checks, and mechanical property evaluations.
